Background

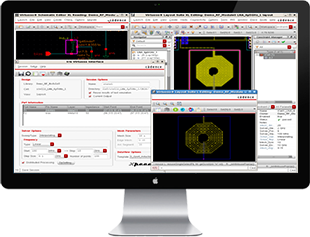

Xpeedic IRIS provides high frequency silicon design engineer a 3D fast EM simulation tool integrated in Cadence Virtuoso design flow to analyze on-chip passive devices. IC designers now have an automated way to access EM analysis of passive devices without limiting them to any specific PDK. IRIS is now an indispensable tool for the modern designer.
3D full-wave accelerated method integrated Cadence virtuoso.
Support to mesh sidewall.
Support optimized rectangle-triangle mixed mesh result in mesh element reduction and mesh regularization.
Accelerated MOM solution simulate complex electromagnetic environment including skin effect, proximity effect and multilayer dielectric losses
Support multicore parallelization calculation and distributed processing
Support to use multithreading technology to create Green's functions
Auto port searching and setting, simplifies EM setup
Auto via array defeaturing
Easy to remove hole and improve simulation speed
Support adaptive mesh,auto defined metal model (sheet, thick, 3D), auto defined mesh size based on model physical size
Multiple simulation jobs for batch run
Easy export to HFSS/HFSS 3D Layout project
Support back annotation
Support bias table and rho table in IRIS to account for technology variations for advanced IC nodes
What's New in Latest Update
Improve MOM Solver simulation efficiency with 1.7 speedup, and reduce memory consumption by 52%
Reduce iCell creation time by 40%, and improve via merge algorithm to ensure simulation accuracy
Combine multiple setup and simulation windows into one page to simplify IRIS usage flow
Search iCell within local library and load to iCell Manager automatically to promote iCell reuse
Support both Nport and equivalent circuit symbol view in one iCell
Support equivalent circuit export for transformer
Integrate IRIS into JobQueue to maximize simulation efficiency
Support MOM Solver as default de-embedding algorithm for IRIS to HFSS 3DLayout flow
