CableExpert——Cable Harness Modeling and Simulation



CableExpert is a high-speed cable modeling and simulation software. The transmission characteristics of high-speed cables can be analyzed quickly and accurately, such as insertion loss, return loss, and crosstalk. A variety of built-in templates support the modeling of coaxial and shielded twisted pairs of Ethernet IEEE , A-PHY , HDBASE-T , Auto-Serdes , and Optical Automotive Ethernet protocols in various applications , helping users quickly establish simulation models and conduct Simulation analysis and performance optimization.

组 0.png

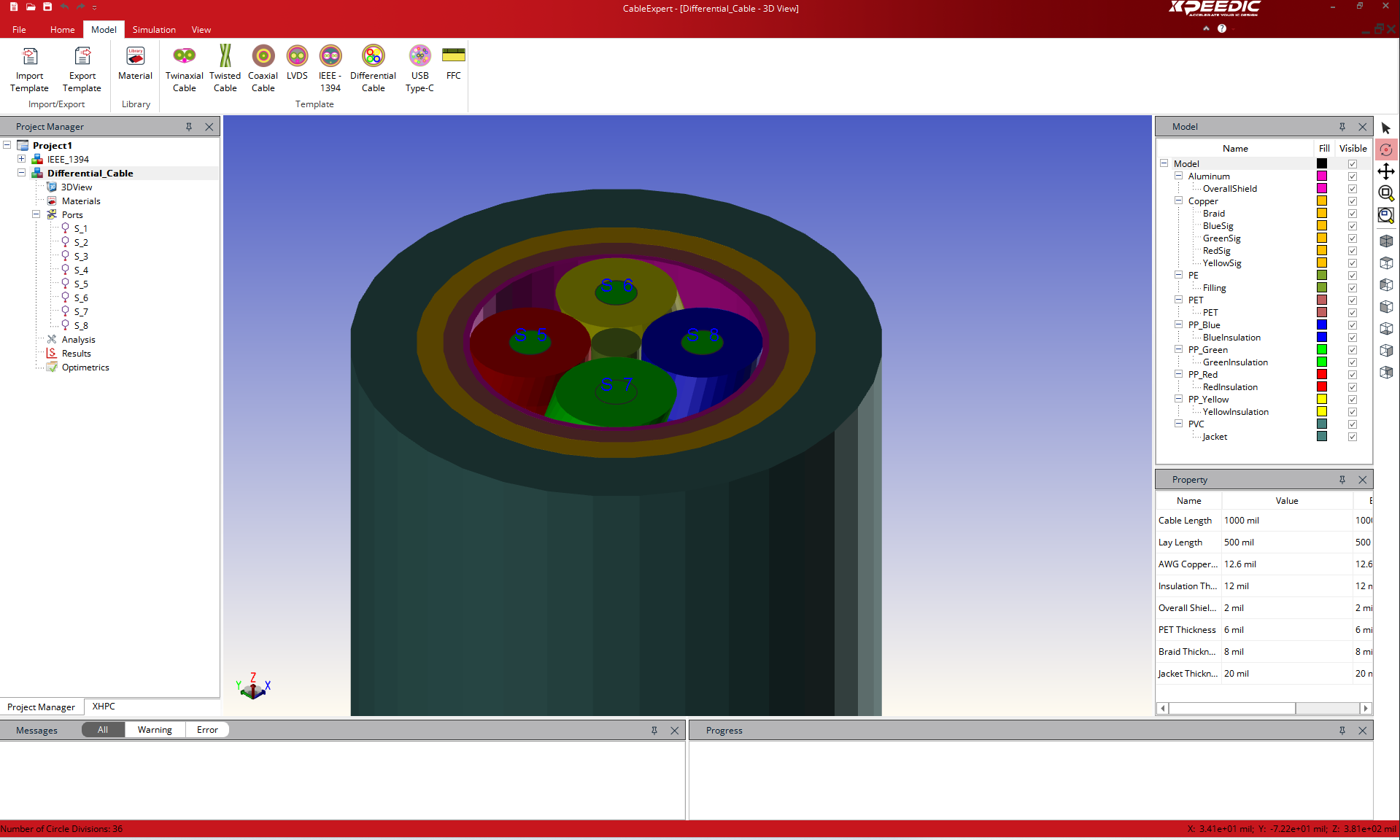

Key Features 1696749638582079.jpg

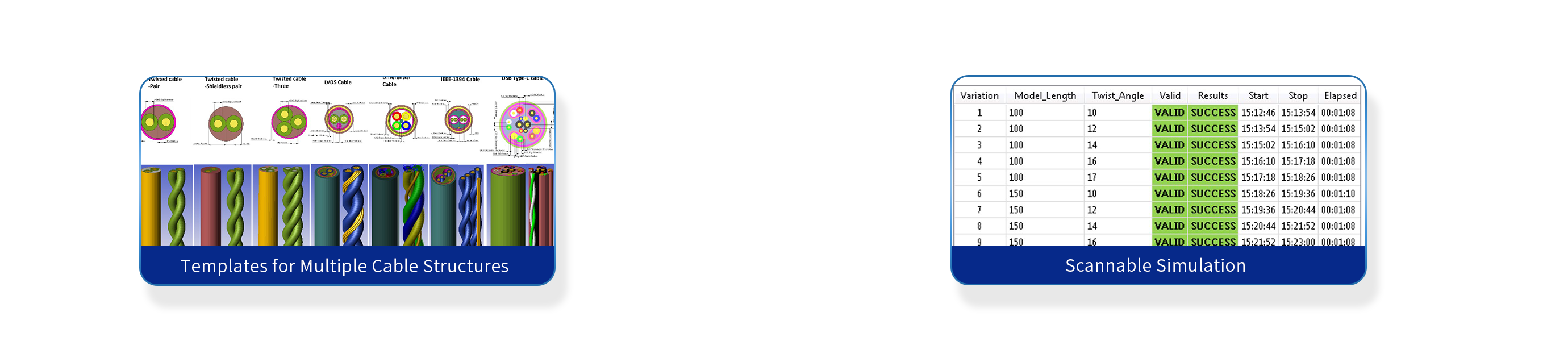

• Support multiple templates for creating models, including: Twinaxial Cable , Twisted Cable , Coaxial Cable , LVDS Cable , IEEE – 1394 Cable , Differential Cable , USB Type-C Cable , FFC Flat Cable.

• Embedded with the industry's most advanced FEM3D solver and Tline2D solver, it supports distributed computing and parallel multi-core computing technology.

• Support scanning simulation of cable length, radius and other parameters to achieve optimal design. Users can select the parameters they want to scan, and support adding multiple sets of different parameters.
